The products listed here are produced in small batches. These are standard solutions which however can be modified according to customer preference also in each case. Otherwise, one might refer to the portfolio of services (special developments).
The products are featured briefly. Closer information contain the PDF files (*.pdf), that are offered for download. For reading these files, the Acrobat Reader (Adobe) is necessary.

	ISM-2001C ISM-2001CTi	Inductive current meter with integrated analog electronics and Micro-WetCon connector, two components, +/-3m/s, voltage output. Optional 2axis magnetometer as compass. Customized connector optional. Depth: 1000 m or 7000 m (Titanium version) Brochure ISM-2001 (242kb)
	ISM-2001F ISM-2001FTi	Inductive current meter with integrated analog electronics and S-2001 connector flange (OEM), two components, +/-3m/s, voltage output Optional two-axis magnetometer as compass Brochure ISM-2001 (242kb)

ISMart

Current Meters, Directional Sea State Probes,

and Multi Parameter Probes

	ISMart	Current meter and multi parameter probe diameter 90 (1+4 sensor slots), > 8 GByte memory on microSD card. Brochure ISMart (328 kb)
	S-2001 compact (repair and calibration only)	Multi parameter probe diameter 90 (1+4 sensor slots), up to 2 GByte memory on CompactFlash card. Brochure Series 2001 (137kb)
	Sensors ISMart and S-2001	Assortment of sensors fitting to the flanges of the 2001 series. More and other sensors can be adapted. Brochure Sensors S-2001 (162kb)

Orientation System

with Underwater Housing

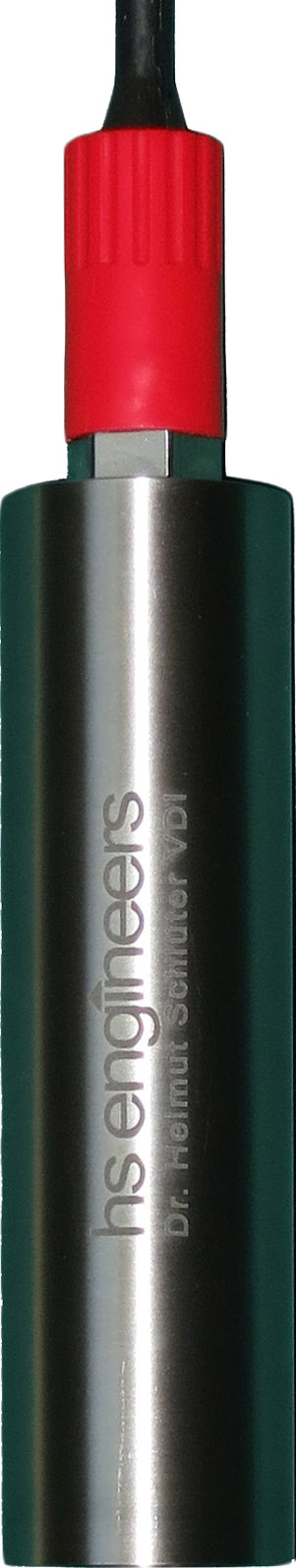

	Mag3	MEMS based compass in an under-water housing. Tilt compensated compass module with triaxial magnetometer, gyrometer and accelerometer. Sensor fusion / Kalman filter for correction of tilt-related directional errors. Option: pressure sensor for depth determination Computation of compass direction and pitch and roll angles; routines for compensation of magnetic distortions. . Brochure Mag3 (124kb)
	MAG1C	Not for new applications! Compass module in an under-water housing. Two-axis magnetometer at a silicon oil damped cardan suspension inside. Analog voltage outputs. Mounting with vertical cylinder axis. Brochure MAG1C (99kb)

Data Loggers, Data Terminals,

and Bluetooth

BlueHS serial	Waterproof box with an accumulator battery to supply an ISMart probe, and a Bluetooth link to a PC for data tranfer. Please see also: Transportable Current Meters and Multi-Parameter Probe-Systems (330kb)
Term2001 (obsolet, only repair)	Keyboard, display and mass-storage data terminal with internal battery, up to 2 GByte memory on CompactFlash card. Brochure Term2001 (128kb)

Series 2000 Current Meters and

Directional Sea State Probes

(Not for new applications; replacements, calibration, and repair only)

	ISM-2000	Inductive current meter 2 components, +/-3m/s, memory, serial interface, various data formats, compass (option) Brochure ISM-2000 (156kb)
	ISM-2000M	Inductive current meter and directional sea state probe 2 components, +/-3m/s, 2 bar absolute pressure, -2 ...28°C, memory, serial interface, intern data reduction (sea state parameters and others) Brochure ISM-2000 (156kb)
